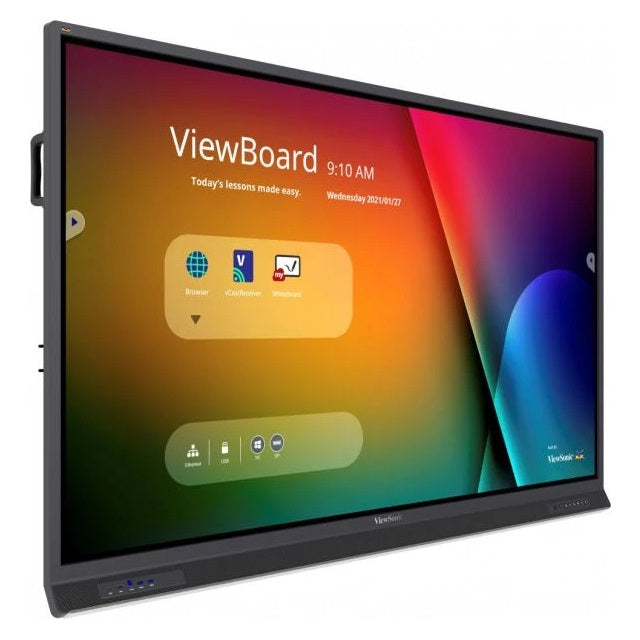

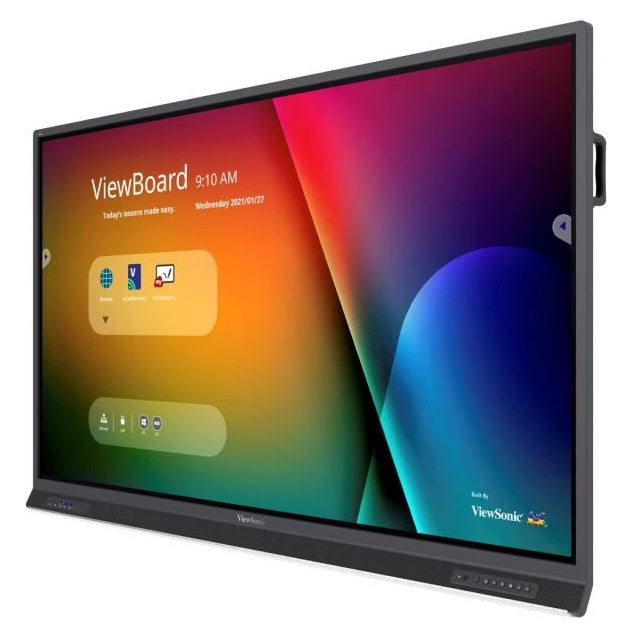

ViewSonic 75 inch Class ViewBoard 4K UHD Monitor IFP7552

ViewSonic IFP7552 75 inch Class ViewBoard 4K UHD Interactive Display

OVERVIEW

The ViewBoard® 52 Series is a 4K Ultra HD interactive whiteboard equipped with user-centric design features and best-in-class collaboration tools for today’s lessons made easy. With a single-cable solution for instant, worry-free connectivity and a unique angular design for easy access to shortcut keys and I/O ports, teachers can seamlessly connect and control for uninterrupted, flowing classes. Dual-pen capability, 33-point touch, Ultra Fine Touch and palm awareness technology combine for a naturally smooth writing experience and endless opportunities for student collaboration, supported by 2X15W front-facing speakers and a 15W subwoofer for amplified student engagement. In another industry-first feature of the display, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source. Complete with a browser-based remote management system, the ViewBoard 52 Series delivers a market-leading interactive whiteboard solution for teachers, students, and IT managers.

• New Exterior Design with Innovative Multimedia Sound Bar
• USB-C for plug-and-play connectivity via a single cable
• Dual-pen, 33-point touch with naturally smooth writing experience
• Industry-leading audio and advanced eye-care technology
• Centralized remote management system via myViewBoard Manager

SPECIFICATIONS

• Display
• Panel Size: 75″
• Panel Type: TFT LCD Module with DLED Backlight.
• Display Area (mm): 1649.644(H) x 927.936(V)
• Aspect Ratio: 16:9
• Resolution: UHD 3840×2160(Pixels)
• Colors: 1.07B colors (10bit)
• Brightness: 400 nits (typ.)
• Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
• Response Time: 8ms
• Viewing Angles: H = 178, V = 178 typ.
• Backlight Life: 50,000 Hours (Typ.)
• Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
• Platform
• Processor: ARM Cortex A73*4
• RAM: 4GB (IFP7552-1A), 8GB (IFP7552-1B)
• Storage: 32GB (IFP7552-1A), 64GB (IFP7552-1B)

Touch

• Type/ Tech: UFT (Ultra Fine Touch) Technology
• Touch Resolution: 32767 x 32767
• Touch Point: Windows: 33 points touch, Android: 20 points touch

INPUT

• HDMI: x2 (3840×2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840×2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
• RGB / VGA: x1 (1920×1080 @60Hz)
• DisplayPort: x1 (3840×2160 @60Hz)
• Audio: x1 (PC audio in)
• RS232: x1
• OPS: module slot x 1
• WiFi: module slot x 1

OUTPUT

• HDMI: x1 (on demand)
• Audio: x1 (Earphone out)
• SPDIF: x1 (optical)

LAN

• RJ45: x1

USB

• Type A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
• Type B: x2, for touch
• Type C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD)

SPEAKERS

• 15W x 2 + 15W x 1 subwoofer

MICROPHONE

• built-in 8-array microphone
• Top Camera Plate
• Yes
• Embedded OS
• Android 9

Bundle Software

• Basic Annotation Software: myViewBoard WhiteBoard for Android
• Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
• Wireless Presentation: ViewBoard Cast & myViewBoard Display
• Special Features
• All-in-one USB port: USB 3.0 x 4
• Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
• Light Sensor: Yes

Power

• Voltage: 100-240VAC +/- 10% Wide Range
• Consumption: 159.4W (Typ.) < 0.5 W (“”Off””)

ERGONOMICS

• Wall Mount (VESA® ): 800 x 400
• OPERATING CONDITIONS
• Temperature (º C): 0°C to 40°C
• Humidity: 20% ~ 80% RH Non-Condensing

DIMENSIONS (W x H x D)

• Physical (inch / mm): 1720.1 (W) x 1069.6 (H) x 118.4 (D) mm, 67.72 (W) x 42.11 (H) x 4.66 (D) inch
• Packaging (inch / mm): 1880 (W) x 1160 (H) x 280 (D) mm, 74.02 (W) x 45.67 (H) x 11.02 (D) inch

WEIGHT

• Net (lb / kg): 125.22 lb / 56.8 kg
• Gross (lb / kg): 158.95 lb / 72.1 kg

REGULATIONS

cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP, BSMI

PACKAGE CONTENTS

1. Power cable(3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. 13. AAA Battery x 2

Compatible Slot-in PC

VPC12 & VPC25/27-O & VPC25/27-O-B series
